Equipment

BK Aerospace has a long list of state of modern, state of the art equipment, all housed inside our 75,000 square foot , climate controlled, facility, as well as our Michoud facility.

5-AXIS CNC MILLING MACHINES

gantry-pic1

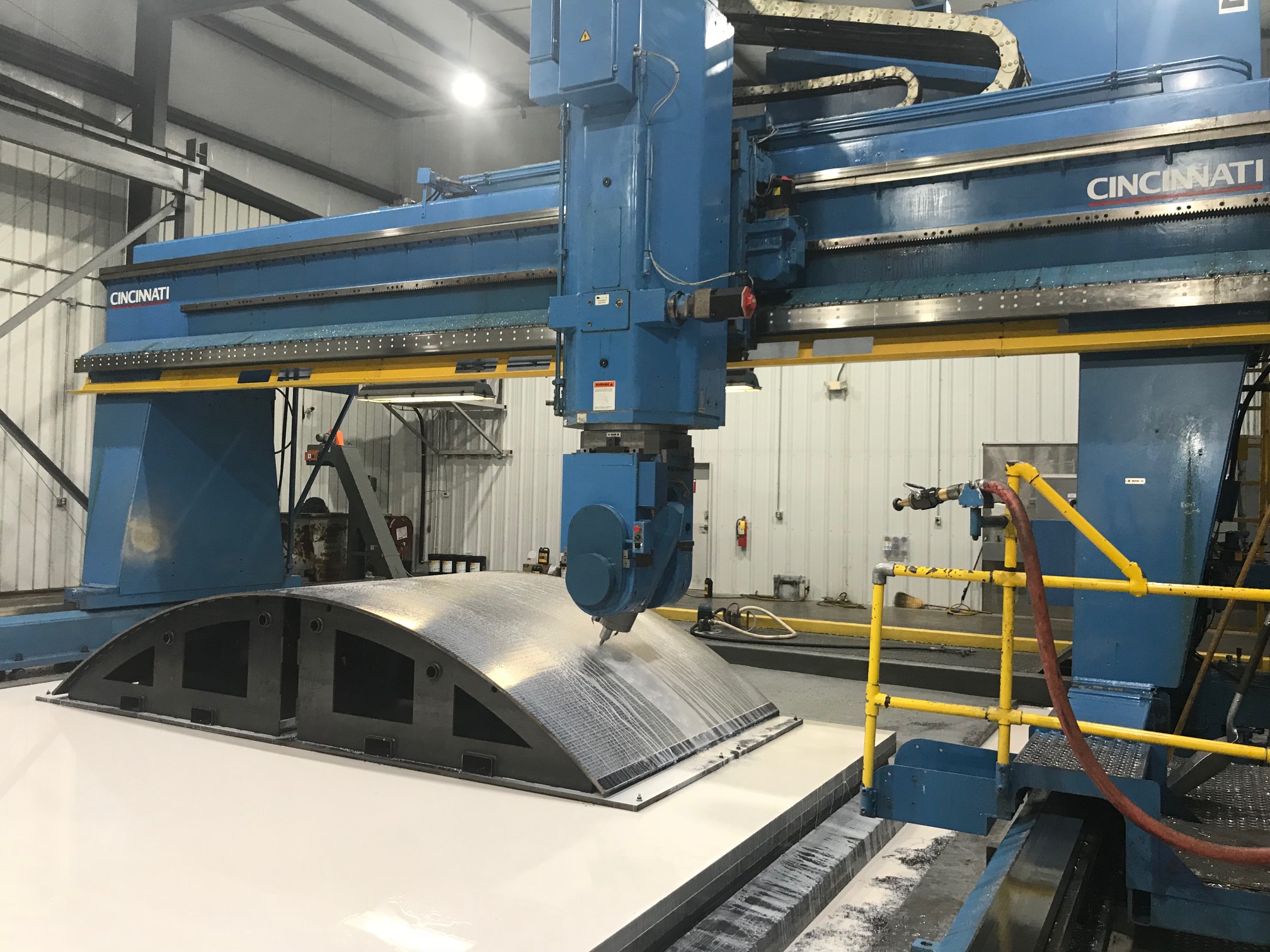

1- CINCINNATI 5 – Axis High Speed GANTRY. Fanuc Control – Work plate dimensions 240” x 612” – X Axis Travel 608” (60’ rail), Y axis Travel 346”, Distance between columns 333”, Z Axis Travel 48” (max 55” nose to table), Height under rail 109”, A Axis (spindle tilt) +125/-95 degrees, C Axis (spindle rotary) +/-200 degrees, Spindle speed max 15,000 rpm. Renishaw probe.

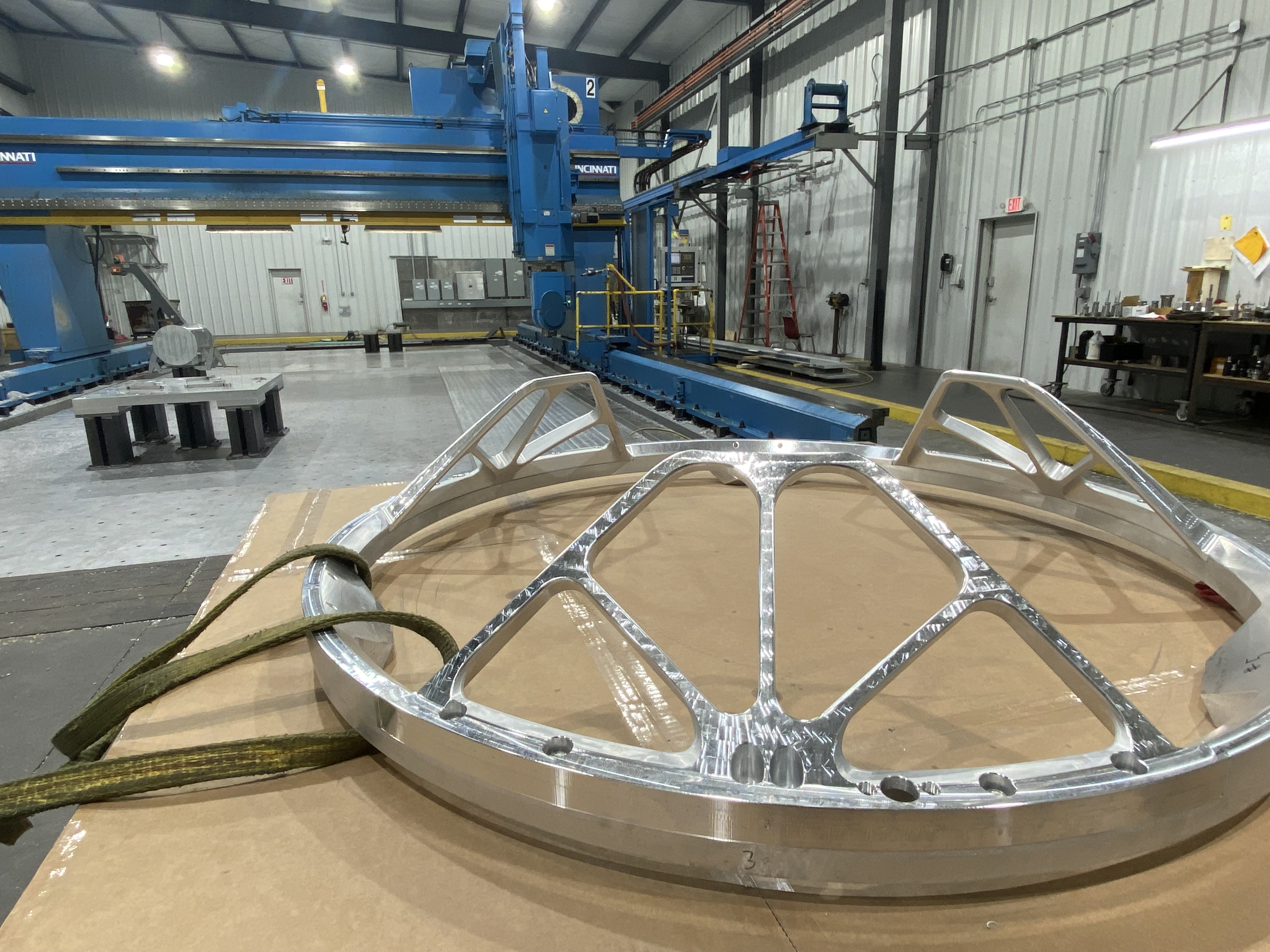

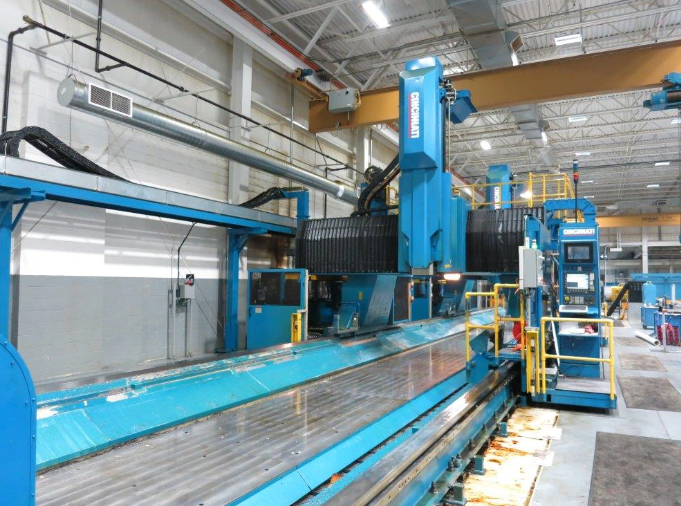

2 CINCINNATI GANTRY Milling Machines – 2 Fanuc controls (1 per machining center/spindle) -Workplate dimensions (100ft x 11ft) – X Axis travel 1200″ (100ft rail) with 2 machining centers/spindle heads, Y Axis travel 132″ (11ft), Z Axis travel 60″ (5ft)- Tool changer – 5 Axis spindle head capable

Capture2

1 Makino a51, 22” by 22” by 23.6” Working cube, Fanuc control, Probe, Laser

1 Mazak Vertical Mill 510C/50 41”x23”x20” –Rotary table, 5 Axis.

CNC (LATHE) TURNING MACHINES

new-lathe

1 Hwacheon Hi-tech 850 XL horizontal turning center with live tooling, 32″ Chucker with Y axis, 200″ travel in Z axis

1 Mazak Integrex 300-III ST Multi-Tasking Machine Tool (5-Axis)

gematec_MAZAK-INTEGREX-300-III-ST-année-2004-1 (1)

1 Mazak Quick Turn Nexus 350 – II MY
1 Mazak Quick Turn 250

4-AXIS CNC MILLING MACHINES

4-axis-cnc

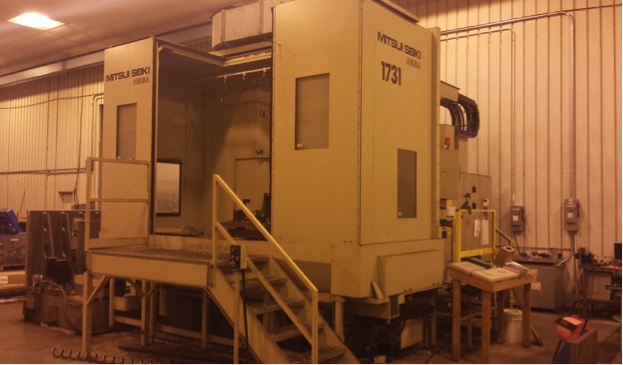

1 Mitsui Seiki HS6A, High Speed Horizontal, 4 axis CNC Mill. 60 Tool changer. Travel X79” Y59” Z40” B360+/- Degrees. 12,000rpm, Fanuc control.
1 Mazak Mill, Mezatech V-815/120RF, 32” X 120” travel (4th Axis Rotary)
1 Okuma Horizontal Machining Center Working Cube X22” Y18” Z18” (4th Axis Rotary)

3–AXIS CNC MILLING MACHINES

3-axis-cnc

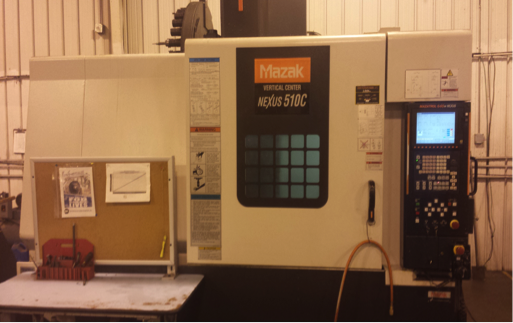

3 Mazak Vertical Machining Center 20”x40” Nexus 510CKY
1 Mazak VTC 300C 32”X77” Travel Vertical Machining Center
1 Takumi Seiki Model V22A; Travel 36” Y and 86” X
1 K & T Three Spindle (30 H.P. Each). Machine Mate Control, X=180″, Y=120″, Z=30″.

WATERJET MACHINING

File_000

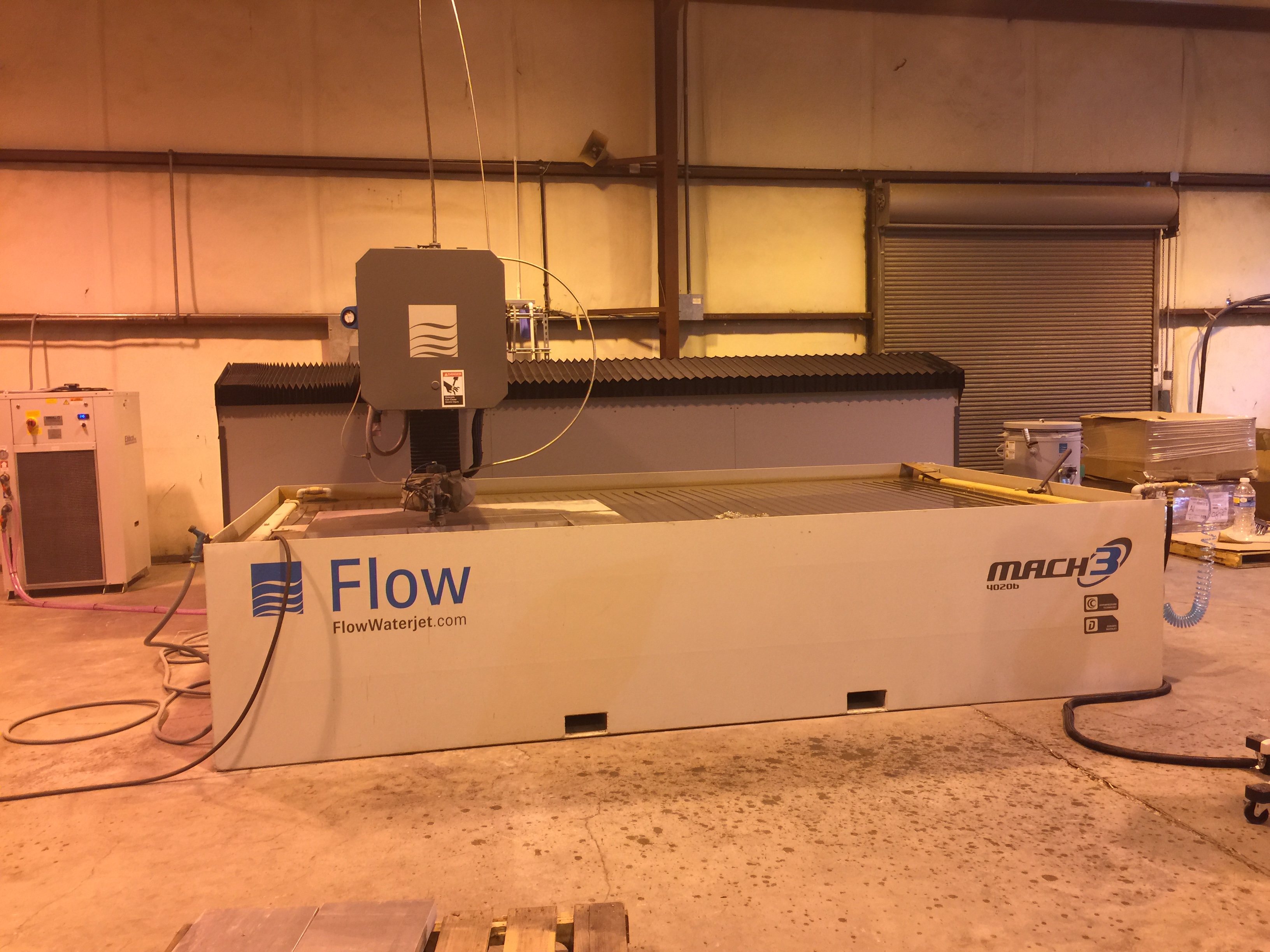

1 Flow mach 3B system m3-4020B, 6’6″x 13’1″ work envelope

WIRE EDM

wire-edm

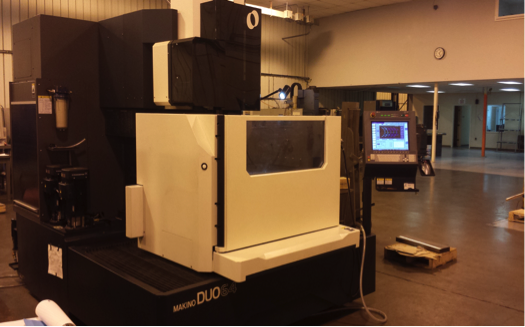

1 Makino Wire Duo 64 4-Axis Working Cube X35.800 Y26.00 Z15.700
1 Fanuc wire EDM working cube x 21.6” plunge type EDM

MISCELLANEOUS SHOP EQUIPMENT

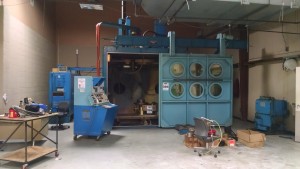

1 Sciaky electron beam welder model VX.3-108 x 72 x 102

img_20160924_074237090

1 Miller Heliarc Synchrowave MIG welder
1 Millermatic TIG welder
1 Victor plasma cutter

2  60 Ton Hydraulic Presses.

1 Honing Machine 6″ Dia. X 48″ Long {automated Stoke}.
1 Sunnen Hone Machine, MBB 1650.
1 MUHR Iron Worker.

PAINT EQUIPMENT

Paint Booth Oven



1 Humidity controlled Paint Booth

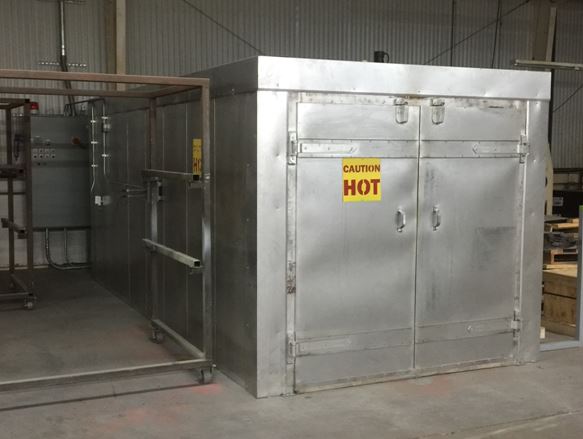

1 Delta H curing oven
